Summary

The renderer was effectively single-buffered despite allocating triple-buffered infrastructure (numFrames=3 command buffers, swapchain images, per-image descriptor heaps):

Render() ended with an unconditional vkQueueWaitIdle after present — zero CPU/GPU overlap.
A single (presentComplete, renderComplete) semaphore pair, baked into a shared submitInfo, with zero fences, was shared for the Window's lifetime.

This reworks the frame-pacing model as one coherent change so up to numFrames frames overlap.

What changed

The deciding constraint is that drawCmdBuffers, the per-frame descriptor-heap slots, and the swapchain images are all keyed by the acquired image index — UIRenderer::WriteSwapchainDescriptors bakes heap slot i to write imageViews[i], so the index that selects a command buffer / heap slot must equal the acquired image index. The sync objects follow from that:

Per-image VkFence — signaled by the submit, waited + reset before that image's command buffer / heap slot is re-recorded. Created signaled so the first use of each image passes through. This (not a queue drain) bounds frames-in-flight and gives the overlap.
Per-image render-finished (present) semaphore — the presentation engine holds it until the image is re-acquired, so per-image is the only safe key. Keying it per-CPU-frame trips VUID-vkQueueSubmit-pSignalSemaphores-00067.
Per-CPU-frame acquire semaphores — the image index isn't known until acquire returns, so these can't be image-keyed. Sized numFrames+1: in-flight depth is bounded by the per-image fences, so numFrames+1 distinct acquire semaphores guarantee the one being reused has no pending operation (VUID-vkAcquireNextImageKHR-semaphore-01779).
Dropped the steady-state vkQueueWaitIdle; kept it on the resize / OUT_OF_DATE / teardown paths.

Note on the prescribed design: the merged issue suggested keying both semaphores by a CPU frame counter. The modern validation layer rejects that for the present-wait semaphore (it must be per-image) — caught by the new test below. The fences-and-semaphores changes remain a single mutually-load-bearing deliverable.

Downstream (#65, #73, #75): paths that relied on the implicit full-queue drain for host-write → device-read ordering now need explicit barriers.

Testing

crafter-build test — 4 passed (MouseScroll, PushConstantRewrite, BLASBuildOptions, and the new FrameLoopSync).

New tests/FrameLoopSync drives the real frame loop against the live Wayland compositor for 60 frames (much more than the in-flight slot count) and asserts: the CPU frame counter advanced once per Render(), the swapchain rotated across multiple images (3/3), and the validation layer reported zero errors. This is the load-bearing check — the old single-pair design only avoided being an active race because the wait-idle masked it.

Also ran the VulkanTriangle example end-to-end (0 validation errors).

Screenshots

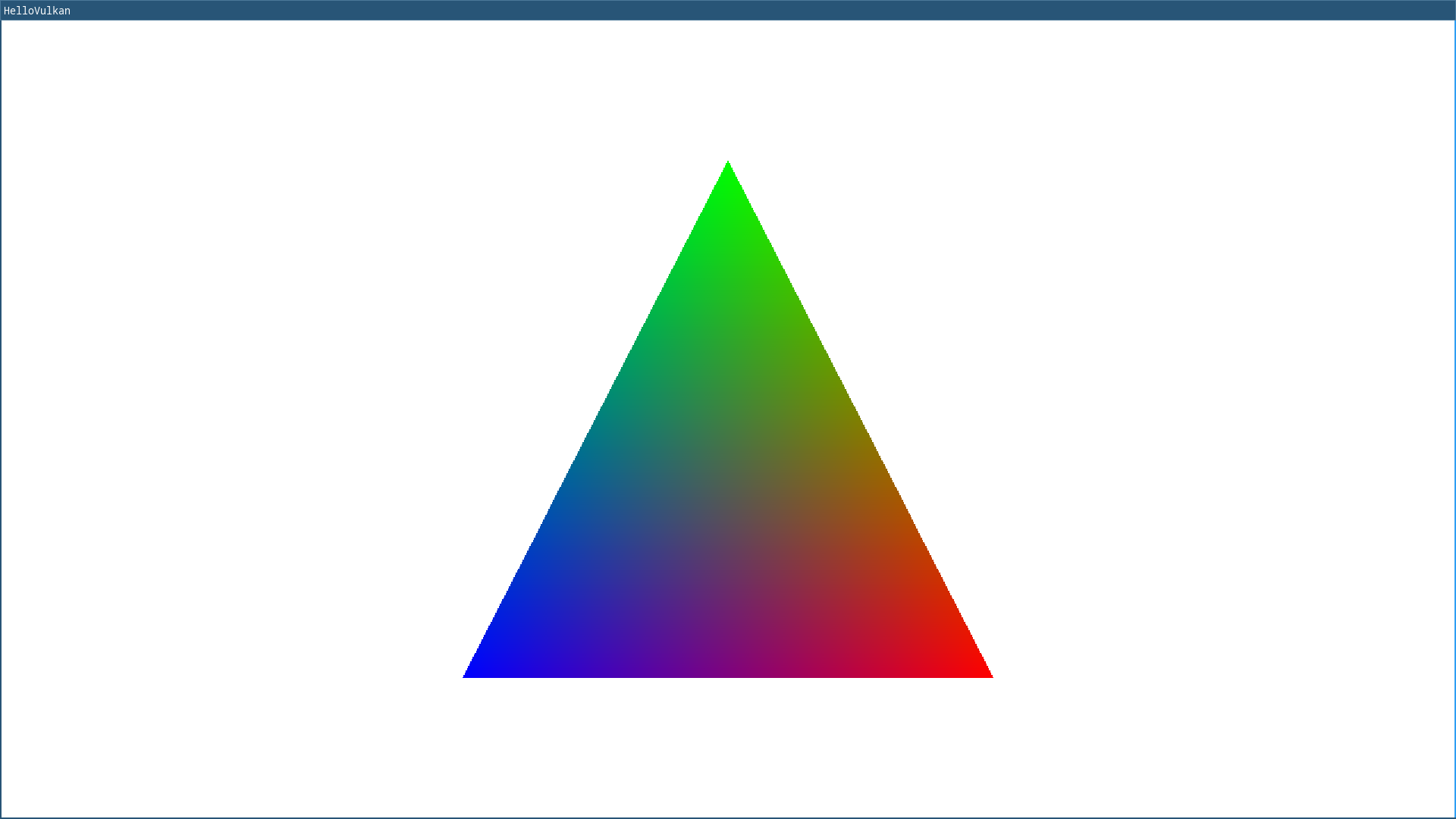

VulkanTriangle rendering under the new multi-frame-in-flight loop:

Resolves #40
